Shuttle Nc01u Docking Box-lan1/ Usb2/ Sata*1 Xlb01

$105.00

SKU:	235934
MPN:	XLB01 Link
Manufacturer:	http://www.shuttle.com/
Brand:	Shuttle
Warranty:	1 Year Manufacturer's return to base
Availability:	In stock
Fright Estimate

Description

▼

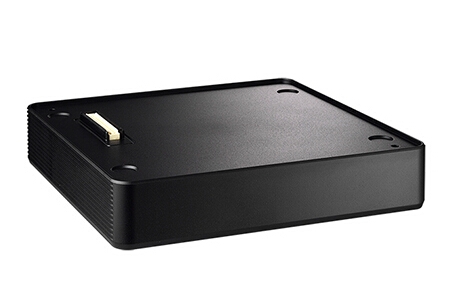

Expansion Box for NC01U Series

The Shuttle accessory XLB01 is compatible with NC01U series. It provides additional Intel® Gigabit LAN and two USB 2.0. The XLB01 also supports one 2.5” 12.5mm SATA 6 Gb/s HDD/SSD (NC01U5/U7only).

　

Connector	Expansion Box for NC01U Series RJ45 x 1 USB 2.0 x 2 SATA port x 1 (Only Support NC01U5/U7)
Support Systems	Win7/Win10

Specifications

▼

XLB01

Expansion Kit for the NC01U Series (LAN, 2x USB and 2.5" storage)

The XLB01 enhances connectivity of your Shuttle XPC nano product of the NC01U-Series and adds one Intel Gigabit-LAN port, two more USB ports and even room for one more 2.5 inch drive. The XLB01 connects to your existing NC01 machine in no time by just placing it underneath.

Compatible with:
Shuttle XPC nano Barebones of the NC01U Series:
NC01U, NC01U3, NC01U5, NC01U7
and complete systems based thereof [1].
Additional Expansion Features:
- 1x RJ45 Gigabit LAN network port (Intel i211)
- 2x USB 2.0 port Type A
- 1x 2.5" bay (only for NC01U5 / NC01U7 [1])
  Supports one hard disk or SSD with a maximum height: of 12.5 mm
  Interface: SATA 6 Gbps
Supported operation systems:
Windows 7, 8.1, 10 with 32- and 64-bit
No additional drivers required.
