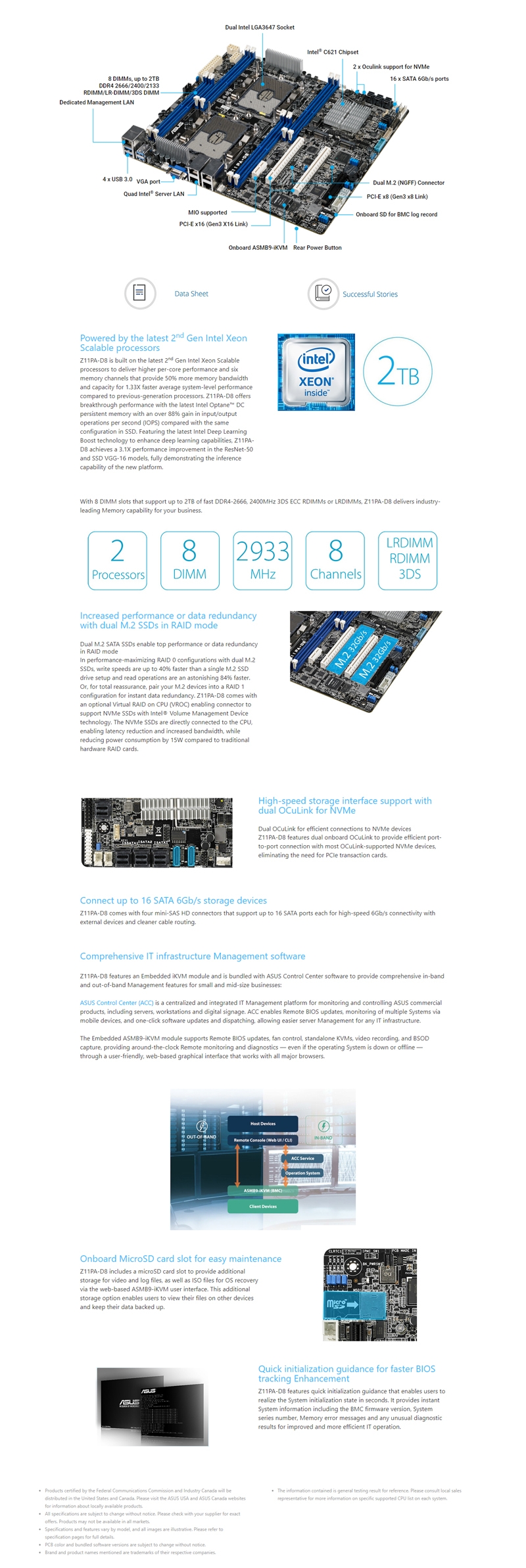

Asus Z11Pa-D8 Server Motherboard Lga 3647 C621 Ddr4 Ecc Reg Dimm (0/ 8) Ceb 3Yr Wty Z11Pa-D8

$996.00
SKU: 285107
MPN: Z11PA-D8 Link
Manufacturer: https://www.asus.com
Brand: Asus
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare
  • Processor / System Bus
    2 x Socket P (LGA 3647)
    1st and 2nd Gen Xeon® Scalable Processor Family (165W)
    *Refer to support page for more information
    UPI (10.4 GT/s)
  • Core Logic
    Intel® Lewisburg PCH C621
  • Memory
    Total Slots : 8 (4-channel per CPU, 4 DIMM per CPU)
    Capacity : Maximum up to 256GB RDIMM/Maximum up to 512GB LRDIMM/Maximum up to 1024GB LR-DIMM 3DS
    Memory Type :
    2933/2666/2400
    Memory Size :
    32GB, 16GB, 8GB, 4GB RDIMM
    64GB, 32GB LRDIMM
    128GB, 64GB LR-DIMM 3DS
    * Refer to support page for more information
    * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
  • Expansion Slots
    Total Slot : 3
    Slot Location 1 : PCI-E x8
    Slot Location 3 : PCI-E x16
    Slot Location 5 : PCI-E x16
    Slot Location 6 : MIO Slot for Audio card
  • Form Factor
    CEB (12"x10.5", 305mm x 267mm)
  • ASUS Features
    ASUS Fan Speed control technology
    ASUS Control Center
  • Storage
    SATA Controller :
    Intel® C621
    12 x SATA3 6Gb/s ports (12 by 3 Mini-SAS Connector)
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
    (Support Software RAID 0, 1, 5, 10 )
    4 SATA3 6Gb/s port by 1miniSAS connector (Marvell 88SE9230)
    Intel®VROC (For Linux/Windows)
    (Support Software RAID )
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
  • Networking
    4 x Intel® I210AT + 1 x Mgmt LAN
  • Graphic
    Aspeed AST2500 with 64MB VRAM
  • On Board I/O
    1 x TPM header
    1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector)
    1 x USB 3.0 pin header , Up to 2 Devices
    1 x USB 2.0 pin header , Up to 2 Devices
    8 x Fan Header , 4pin (3pin/4pin fan dual support)
    1 x Serial Port Header
    1 x SMBus
    1 x Chassis Intruder
    4 x Front LAN LED
    2 x M.2 Connector , NGFF Type : 22110/2280/2260/2242
    1 x VROC Key Header
    1 x Q-Code/Port 80 LED
  • Back I/O Ports
    4 x USB 3.0 ports
    1 x VGA port
    4 x RJ-45 GbE LAN ports
    1 x RJ-45 Mgmt LAN port

    Rear Switch/LED:
    1 x Power switch
    1 x Message LED
    1 x HDD LED
    1 x Location LED
    1 x BMC LED
    1 x P5V LED
  • Management Solution
    ACC(ASUS Control Center)
    Onboard ASMB9-iKVM for KVM-over-Internet
  • Environment
    Operation temperature: 10°C ~ 35°C
    Non operation temperature: -40°C ~ 70°C
    Non operation humidity: 20% ~ 90% (Non condensing)
  • Weight
    Gift Box (1-in-1)
    Net Weight : 1.24 KG
    Gross Weight : 2.32 KG

    Bulk Pack (10-in-1)
    Net Weight : 1.24 KG
    Gross Weight : 16.26 KG
  • Accessories
    I/O Shield
    1 x Supporting DVD
    2 x LGA3647 carrier
  • Monitoring
    CPU Temperature
    Fan RPM
