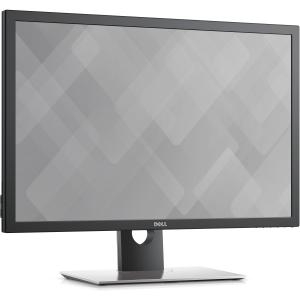

Dell U-series 30" (16:10) Ips Wled, 2560x1600, 6ms, Dp, Usb, H/ Adj, Srgb, 3yr Up3017
| SKU: | 233227 |
|---|---|
| MPN: | UP3017 Link |
| Manufacturer: | http://www.dell.com/ |
| Brand: | Dell |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
Premier Color for unparalleled performance.
- Precise color, out of the box: With a factory calibration report and a Delta-E < 2, you can be confident that your colors will be impressively accurate right from the start.
- Wide color coverage: Major industry standards such as AdobeRGB, sRGB, REC709 and DCI-P3 are 99% covered.
- Fine-tune to your preferences: Custom Color mode, SDK and optional X-rite i1Display Pro colorimeter allow you to customize colors to your preferences.
- Exceptional detail: With 1.07 billion colors (64x more colors than the standard monitor), you can see more details in higher clarity, even across an ultrawide viewing angle.
Incredible usability.
- Expanded canvas: Advanced connectivity (DP-out) allows for simple daisy chain extension into a second screen.
- A view tailored to you: Easily display content from two PC sources with picture-by-picture and picture-in-picture features. Plus the KVM feature enables you to manage content with a single keyboard and mouse.
- Stay connected: A wide range of connectivity ports ensure that you can connect your secondary devices without extra hardware.
- Work comfortably: With height-adjustable, tilt, swivel and pivot features, you can collaborate and work with ease.
Specifications
Display
- Diagonal Viewing Size
75.62 cm (30 inches)
Preset Display Area (H x V)
641.3 mm x 400.8 mm
25.2 inches x 15.8 inches
257025.0 mm² (398.2 inches²)
Panel Type, Surface
In-Plane Switching Technology
Maximum Preset Resolution
2560 x 1600 at 60 Hz
Border Width (Edge of Monitor active area)
22.71 mm (Top/Left/Right)
23.48 mm (Bottom)
Viewing Angle
178° vertical / 178° horizontal
Pixel Pitch
0.251 mm x 0.251 mm
Pixel Per Inch (PPI)
101
Contrast Ratio
1000 to 1 (typical)
Aspect Ratio
16:10
Backlight Technology
White LED edge light system
Brightness
350 cd/m² (typical)
Response Time
6ms (FAST mode)
8ms (NORMAL mode)
Adjustability
Height adjustable Stand (up to 150mm)
Tilt (5°/21°)
Swivel (-30° to 30°)
Pivot (-90° to 90°)
Built in cable-management
PbP / PiP
PbP (Yes)
PiP (Yes)
Daisy Chain Availability
Yes
Dell Display Manager Compatibility
Yes with Easy Arrange
Remote Asset Management
Yes, via Dell Command |Monitor
Color Support
Color Gamut (typical):
99% Adobe RGB (Delta E < 2)
99% sRGB
99% REC 709
99% DCI-P3
Color Depth
1.07 Billion colors
Color Calibration SDK SW
Yes
Color Calibration with X-rite colorimeter
Yes
Flat Panel Mount Interface
VESA (100 mm)
Display Screen Coating
Anti-glare with 3H hardness
Audio Output
1 Analog 2.0 audio line out (3.5mm jack)
Connectivity
- 1 x DP 1.2 (HDCP 1.4)
1 x mDP 1.2 (HDCP 1.4)
1 x DP 1.2 (out) with MST (HDCP 1.4)
2 x HDMI 1.4 (HDCP 1.4)
2 x USB 3.0 downstream port
2 x USB 3.0 with BC1.2 charging capability at 2A (max)
Built-in Devices
USB3.0 Hi-Speed Hub (1 USB upstream port and 4 USB downstream, with 2 x BC1.2 charging capability at 2A (max)
Security
- Security lock slot (cable lock sold separately)
Dimensions
- Height with stand (Compressed ~ Extended)
482.3 mm ~ 632.3 mm
18.99" ~ 24.89"
Depth with stand
217.0 mm
8.54"
Width
686.9 mm
27.04"
Height without stand
447.1 mm
17.60"
Depth without stand
58.0 mm
2.28"
Width without stand
686.9 mm
27.04"
Weight (panel only - for VESA mount)
6.49 kg
14.31 lb
Weight (with packaging)
13.10 kg
28.88 lb
Power
- Voltage Required
100-240 VAC / 50 or 60 Hz ± 3 Hz / 1.6 A (Max.)
Power Consumption (Operational)
54W (typical) / 108W (maximum) / 38.2W (Energy Star)
Power Consumption Stand by / Sleep
Less than 0.3W
